The Extruder Barrel: A Masterpiece of Polymer Processing
Introduction
In the intricate world of polymer processing and manufacturing, Extruder Barrels stands as a pinnacle of engineering marvel, a testament to the fusion of art and science. These unassuming cylindrical vessels play a pivotal role in the transformation of raw plastic materials into a wide array of finished products, from simple plastic bottles to complex automotive parts. In this comprehensive exploration, we will embark on a journey through the anatomy, functions, materials, and manufacturing of Extruder Barrels, uncovering their indispensable role in the world of plastics.
I. Anatomy of an Extruder Barrel
An Extruder Barrel is a complex yet elegant structure composed of several key elements, each with a specific role to play in the polymer processing continuum. Let us dissect the Extruder Barrel, piece by piece, to understand its anatomy better.

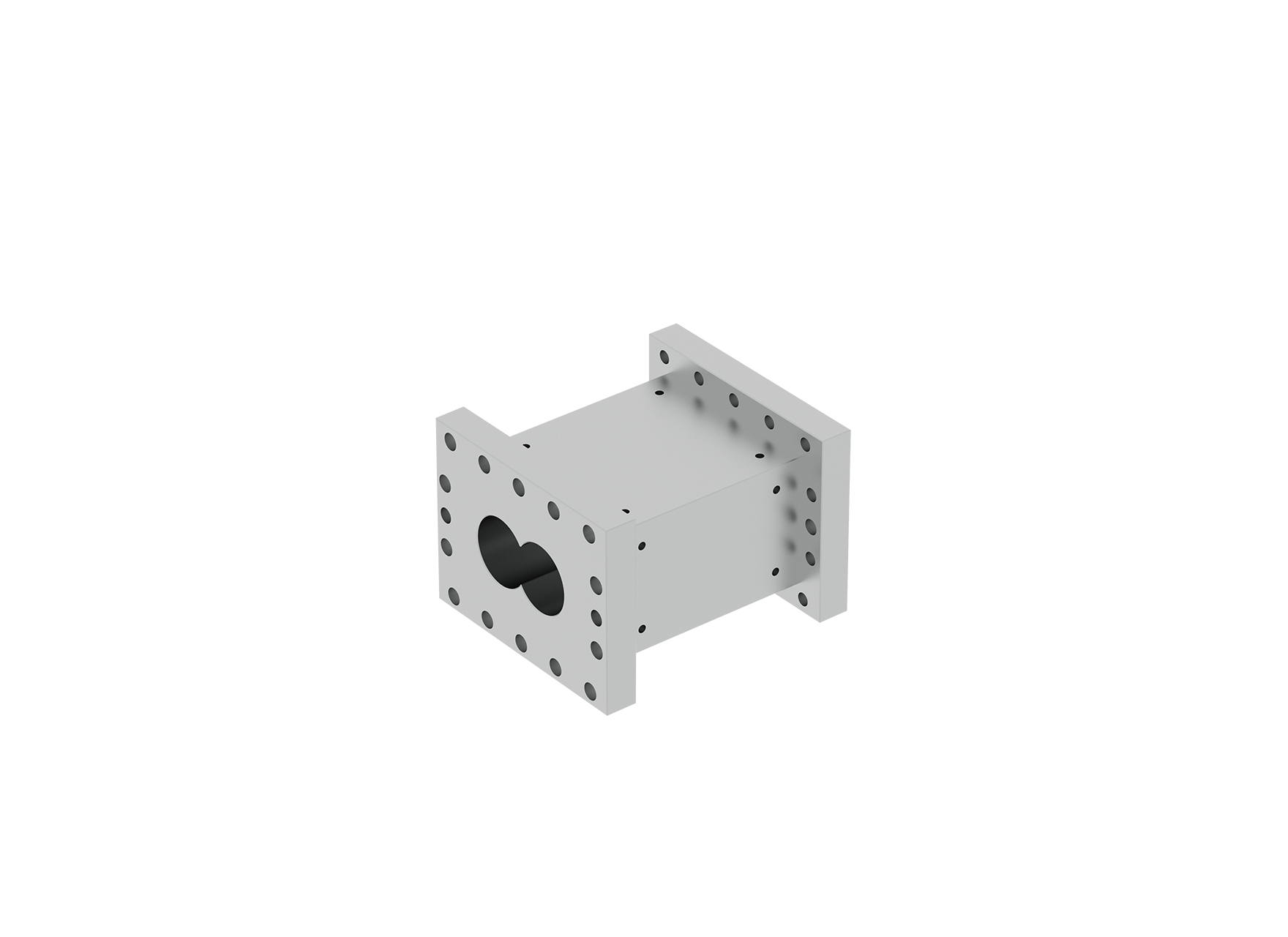

Barrel Body: The primary component of the Extruder Barrel, the barrel body, is typically made of high-quality steel or other specialized alloys. Its exterior is finely machined to ensure precision, durability, and corrosion resistance. The interior of the barrel body is smooth and honed to facilitate the movement of the polymer material.
Feed Section: This is where the raw plastic material is introduced into the barrel. The feed section is equipped with features like feed throats, hopper adapters, and feed screws to ensure a consistent material supply.
Transition Section: As the plastic material moves further into the barrel, it enters the transition section. This part is designed to aid in the compression and melting of the polymer, transitioning it from solid to molten state. It often contains mixing elements and temperature control zones.
Metering Section: In the metering section, the molten plastic is homogenized and pressurized, preparing it for extrusion through the die. This section features various types of screws and screw elements tailored to the specific requirements of the process.
Screw and Screw Elements: The heart of the Extruder Barrel, the screw, plays a critical role in conveying, melting, mixing, and pressurizing the plastic material. Screw elements, such as kneading blocks, mixing pins, and barrier flights, are strategically placed along the screw's length to achieve desired material properties.
II. Functions of the Extruder Barrel
The Extruder Barrel is not just a passive container; it is a dynamic component that performs several crucial functions throughout the polymer processing journey:
Material Conveyance: The primary function of the Extruder Barrel is to transport the raw plastic material from the feed section to the die. The rotating screw and screw elements play a pivotal role in this process, pushing and compressing the material.
Melting and Mixing: As the plastic material progresses along the barrel, it is subjected to increasing temperature and pressure. This leads to the material's gradual melting and mixing, ensuring uniformity in composition and properties.
Degassing: Many polymer processing applications require the removal of gases or volatiles from the molten plastic. The design of the Extruder Barrel can incorporate degassing zones where unwanted gases are removed before extrusion.
Pressure Buildup: The Extruder Barrel pressurizes the molten plastic, preparing it for extrusion through the die. This pressure buildup is crucial for achieving the desired product shape and dimensions.
Temperature Control: Precise temperature control is essential in polymer processing to maintain the material's properties. The Extruder Barrel features multiple heating and cooling zones to achieve and maintain the required temperature profiles.
III. Materials for Extruder Barrels
The choice of materials for Extruder Barrels is paramount, as it directly impacts the performance, longevity, and suitability for specific polymer processing applications. Several materials are commonly used:
Tool Steel: Tool steels, such as H13, are renowned for their exceptional hardness and wear resistance. They are well-suited for processing abrasive materials.
Nitrided Steel: Nitriding enhances the surface hardness and wear resistance of the barrel. It is a cost-effective solution for many extrusion processes.
Bimetallic: Bimetallic barrels combine the advantages of tool steel with a wear-resistant liner made of a different material, such as tungsten carbide. This provides both durability and cost-effectiveness.
Ceramics: For applications demanding wear resistance, ceramic-coated barrels are a choice. These barrels feature a ceramic lining that can withstand highly abrasive materials.
Alloys: Specialized alloys are used in applications where resistance to corrosion or chemical attack is crucial. Examples include Hastelloy for processing corrosive plastics.
High-Density Polyethylene (HDPE): In certain cases, barrels made from HDPE are employed for their corrosion resistance and ease of cleaning.
IV. Manufacturing and Design Considerations
Manufacturing an Extruder Barrel is a meticulous process, with design considerations that are heavily influenced by the specific requirements of the intended application:
Precision Machining: The exterior of the barrel body undergoes precision machining to ensure concentricity and smoothness, reducing wear and facilitating efficient material movement.
Screw Design: The design of the screw and screw elements is customized to match the polymer's properties, ensuring performance.
Thermal Control: Accurate temperature control is achieved through the integration of heating and cooling elements. Precise control is vital to maintain material properties.
Liner and Coating: Depending on the choice of materials, barrels may be lined or coated with wear-resistant materials to extend their lifespan.
Barrel Length: The length of the Extruder Barrel is determined by the process requirements, such as the desired level of melting, mixing, and pressure buildup.
Safety Features: Safety features, such as pressure relief mechanisms, are incorporated to mitigate risks associated with excessive pressure.
V. Applications and Industry Relevance
Extruder Barrels are indispensable in a wide range of industries, including:
Plastics Manufacturing: Extruder Barrels are used for producing a myriad of plastic products, from film and sheet to pipes and profiles.
Compounding: They play a pivotal role in compounding processes, where various additives are mixed with base polymers to create tailored materials.
Food and Pharmaceutical: In these industries, Extruder Barrels are used to process materials for the production of food packaging, pharmaceutical products, and medical devices.
Rubber and Tire Industry: Extrusion is vital in the manufacture of rubber products, including tires, conveyor belts, and seals.
Recycling: Extruder Barrels are employed in recycling processes to melt and reprocess post-consumer plastics.
VI. Innovations and Future Trends
The field of Extruder Barrels continues to evolve, with ongoing innovations and trends that shape the future of polymer processing:
Sustainability: There is a growing focus on reducing energy consumption and material waste in extrusion processes.
Industry 4.0 Integration: The integration of digital technologies and sensors for real-time monitoring and control is becoming increasingly prevalent, enhancing the precision and efficiency of extrusion.
Advanced Materials: Research into high-performance materials and coatings is ongoing to enhance the durability and performance of Extruder Barrels.
Customization: The trend towards
